KAELUS IBA-0850B CALIBRATION and KAELUS IBA-0850B REPAIR

A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the KAELUS IBA-0850B Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Cellular Test Set? Shop for Comparable Products on our   new Cellular Test Set page


   KAELUS IBA-0850B   Description / Specification:
KAELUS IBA-0850B 824–849 MHz PIM Analyzer

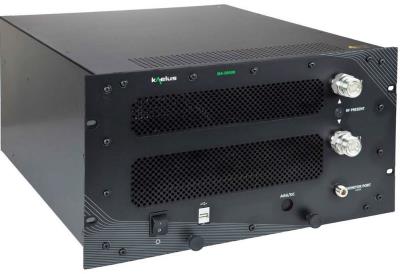

The Kaelus IBA-0850B PIM Analyzer is a complete bench top and rack mounting PIM test solution used with a system controller and intuitive user software. This solution comes in model variations that cover all major commercial wireless bands. It has two test ports to support a Reverse IM measurement on either port and a forward IM measurement port-to-port. It can be fitted with optional internal DC/AISG Bias Tee.
Specifications.

System.
Measurement method: Port 1 Reverse; Port 2 Reverse; Port-to-Port Forward PIM.
Residual PIM: < -125dBm (x 2 @ 43dBm).
IM order: 3rd, 5th, 7th, 9th and 11th order.
User interface ports: 1 x USB Type B, 1 x USB Type A, 1x Monitor Port (N Female).
Bias-Tee Option: 1 x AISG / DC on 8 Pin DIN Female.
Test ports: 2 x RF Output (7-16 DIN Female).
RTF Module: RTF-1000.

Transmitter.
Transmit frequencies: 869 - 894 MHz.
Frequency increment: 100 kHz.
Frequency accuracy: ± 5ppm maximum, aging ± 1ppm maximum after first year.
Power per tone (adjustable): +20 to +44dBm | 0.1W to 25W (Effective June 28, 2018), +30 to +44dBm | 1W to 25W (Units manufactured before June 28, 2018).
Power accuracy (per tone): ± 0.35 dB.

Receiver.
Receive band (100kHz steps): 824 - 849 MHz.
Measurement noise floor: < -130 dBm (-135 dBm, typical).
Measurement range: -55 dBm to -130 dBm.





Standard Calibration $1,780.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the KAELUS IBA-0850B. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related Communication Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

Accuracy
Accuracy is the degree of closeness of measurements of a quantity to that quantity's actual (true) value.

Jitter
Jitter in technical terms is the deviation in or displacement of some aspect of the pulses in a high-frequency digital signal. Jitter is the time variation of a periodic signal in electronics and telecommunications, often in relation to a reference clock source. Jitter may be observed in characteristics such as the frequency of successive pulses, the signal amplitude, or phase of periodic signals. Jitter is a significant, and usually undesired, factor in the design of almost all communications links (e.g., USB, PCI-e, SATA, OC-48). In clock recovery applications it is called timing jitter.

Receiver Sensitivity
Receiver Sensitivity is the optical power required by a receiver for low error signal transmission. In the case of digital signal transmission, the mean optical power is usually quoted in Watts or dBm (decibels referred to 1 milliwatt).

Please contact us for your KAELUS IBA-0850B CALIBRATION and/or KAELUS IBA-0850B 824–849 MHz PIM Analyzer REPAIR
