BURLEIGH WA-1650 REPAIR and BURLEIGH WA-1650 CALIBRATION

Custom-Cal has a high success rate in the repair of the BURLEIGH WA-1650. A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the BURLEIGH WA-1650 Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Wavelength Meter?
Shop for Comparable Products on our  used Wavelength Meter page


   BURLEIGH WA-1650 (WA1650)   Description / Specification:

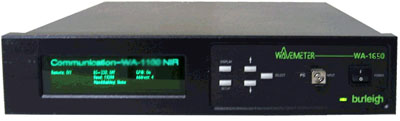

BURLEIGH WA-1650 Optical Wavelength Meter

Burleigh WA-1650 Optical Wavelength Meter uses Michelson interferometer-based WAVEMETER technology to determine the absolute wavelength of an optical signal under test by comparing its interference fringe pattern with that of a built-in HeNe laser wavelength standard. Wavelength Range: 700 - 1650 nm (181 - 428 THz). Wavelength Absolute accuracy: ± 0.3 pm. Wavelength Display resolution: 0.0001 nm. Power Absolute accuracy: ± 0.5 dB (at ± 30 nm from 1310 and 1550 nm). Power Resolution: 0.01 dB. Power Linearity: ± 0.3 dB. Power Display resolution: 0.01 dB. Optical Input Signal Sensitivity: -40 dBm (0.1 µW), 1200 - 1600 nm; -30 dBm (1.0 µW), 700 - 1650 nm. Maximum input level (sum of all lines): + 10 dBm (10 mW). Measurement Cycle Time: 1 s (1 measurements/s). Instrument interface: GPIB (IEEE-488.2), RS-232, LabVIEW, LabWindows.





Standard Calibration $515.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the BURLEIGH WA-1650. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related Optical Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

dBm
Optical power referenced to 1 millimatt

Multimode Fiber
Multimode Fiber has a large core (almost always 62.5 microns - a micron is one one millionth of a meter - but sometimes 50 microns) and is used with LED sources at wavelengths of 850 and 1300 nm for short distance, lower speed networks like LANs. Both multimode and singlemode fiber have an outside diameter of 125 microns - about 5 thousandths of an inch - just slightly larger than a human hair.

Power Repeatability
Power Repeatability is the random uncertainty in reproducing the power level after changing and re-setting the power level. The power repeatability is ± half the span (in dB) between the highest and lowest actual power. Note: - The long-term power repeatability can be obtained by taken the power repeatability and power stability into account.

Refractive Index
The refractive index or index of refraction of a substance is a measure of the speed of light in that substance. It is expressed as a ratio of the speed of light in vacuum relative to that in the considered medium. The velocity at which light travels in vacuum is a physical constant, and the fastest speed at which energy or information can be transferred. However, light travels slower through any given material, or medium, that is not vacuum.

Total insertion loss
A measure of the loss of light within an optical component


Please contact us for your BURLEIGH WA-1650 REPAIR and/or BURLEIGH WA-1650 Optical Wavelength Meter CALIBRATION
