EXFO FTB-400 REPAIR and EXFO FTB-400 CALIBRATION

Custom-Cal has a high success rate in the repair of the EXFO FTB-400. A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the EXFO FTB-400 Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Fiber Optic Instrumentation?
Shop for Comparable Products on our  used Fiber Optic Instrumentation page


   EXFO FTB-400 (FTB 400)   Description / Specification:

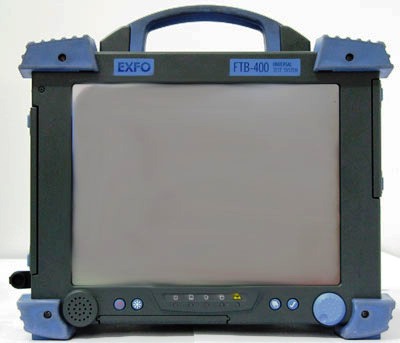

EXFO FTB-400 Universal Test System

The FTB-400 Universal Test System comes in two configurations. Two-Slot Configuration; OTDR module (wide selection of models) combined with an automated optical loss test (OLTS) module, perfect for fiber characterization and over 500 OTDR and loss testing combinations. Four-Slot Configuration; Extensive datacom testing, using the complete Packet Blazer line of modules - Fibre Channel, Gigabit Ethernet and 10 Gigabit Ethernet. Multiservice transport testing using Transport Blazer modules in conjunction with the Packet Blazer modules. Dedicated OTDR, loss and Ethernet (up to 10 Gigabit) testing, combining an OTDR, the MultiTest module (OLTS) and a Packet Blazer module. Module Choices: Over 25 OTDR models covering all network testing applications, from core to access. Over 11 OLTS models for testing optical return loss (ORL) and insertion loss (IL). CD and PMD analyzer. OSA. SONET/SDH analyzers (up to 10 Gbit/s). Next-generation SONET/SDH analyzers. DSn/PDH analyzers. Ethernet analyzers (up to 10 Gbit/s). Fibre Channel analyzers. Switch module: faster automated acquisitions by switching between one common port and multiple input/output ports. Modular pulse-suppressor boxes (single mode and multimode). Display Touchscreen, color, 800 x 600 TFT 307 mm (12 1/16 in). Interfaces: Serial RS-232, Parallel port, External monitor, Two USB 1.1 ports, Infrared (IrDA) port, Audio microphone In 3.5 mm, Audio speaker Out 3.5 mm, Two PCMCIA type II or one PCAMCIA type III. Storage: Internal 80 GB hard drive minimum (over 750 000 OTDR test files), Internal 3.5 in 1.44 MB floppy drive, External USB read/write CD-ROM (optional), Flash memory cards (256 MB) (optional), NTFS file system.


Repair Services / Additional Information.


Exfo FTB-400 Configurations
All FTB-400 configurations have a TFT active color touchscreen
Original FTB-400 configurations
FTB-400-D4-N12-00, 512 MB Memory, Two-slot receptacle (GP-402)
FTB-400-D4-N12-AV, 512 MB Memory, Four-slot receptacle (GP-404)
FTB-400-D4-N12-BP, 512 MB Memory, Bus protector (GP-2000)
Newer FTB-400 configurations
FTB-400-N8-D4-00, 128 MB Memory, Two-slot receptacle (GP-402)
FTB-400-N8-D4-H, 128 MB Memory, Seven-slot receptacle (GP-407)
FTB-400-N8-D4-MP, 128 MB Memory, Eight-slot receptacle (GP-408)
FTB-400-N8-D4-BP, 128 MB Memory, Bus protector (GP-2000)
FTB-400-N10-D4-00, 256 MB Memory, Two-slot receptacle (GP-402)
FTB-400-N10-D4-H, 256 MB Memory, Seven-slot receptacle (GP-407)
FTB-400-N10-D4-MP, 256 MB Memory, Eight-slot receptacle (GP-408)
FTB-400-N10-D4-BP, 256 MB Memory, Bus protector (GP-2000)
FTB-400-N12-D4-00, 512 MB Memory, Two-slot receptacle (GP-402)
FTB-400-N12-D4-H, 512 MB Memory, Seven-slot receptacle (GP-407)
FTB-400-N12-D4-MP, 512 MB Memory, Eight-slot receptacle (GP-408)
FTB-400-N12-D4-BP, 512 MB Memory, Bus protector (GP-2000)



Standard Calibration $90.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the EXFO FTB-400. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related Optical Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

Bandwidth
Bandwidth is the difference between the upper and lower frequencies in a contiguous set of frequencies within which a fiber optic component, link or network will operate.

Extinction Ratio (ER)
Extinction Ratio is the ratio of two optical power levels, of a digital signal generated by an optical source, (example a laser diode), where P1 is the optical power level generated when the light source is "on," and P0 is the power level generated when the light source is "off." The extinction ratio may be expressed as a fraction, in dB, or as a percentage.

Optical Signal-to-noise Ratio (OSNR)
Optical Signal-to-noise ratio is the ratio between the signal power and the noise power in a given bandwidth. Most commonly a reference bandwidth of 0.1 nm is used. This bandwidth is independent from the modulation format, the frequency and the receiver. For instance a OSNR of 20dB/0.1nm could be given, even the signal of 40 GBit DPSK would not fit in this bandwidth. OSNR is measured with a Optical Spectrum Analyzer. It is generally measured at the wavelength of interest.

Repeatability
Repeatability is the variation in a number of repeated measured quantities when measurement conditions are changed and restored. The value corresponds to half the spread between the minimum and maximum value measured.

Wavelength Repeatability
Wavelength Repeatability is the random uncertainty in reproducing a wavelength after detuning and re-setting the wavelength. The wavelength repeatability is ± half the span between the maximum and the minimum value of all actual values of these wavelengths. Example test condition: uninterrupted TLS output power, constant power level, temperature within operating temperature range, coherence control off, short time span. Note: NOTE The long-term wavelength repeatability can be obtained by taken the wavelength repeatability and wavelength stability into account.

Please contact us for your EXFO FTB-400 REPAIR and/or EXFO FTB-400 Universal Test System CALIBRATION
