Keysight (Agilent) N9356B CALIBRATION and Keysight (Agilent) N9356B REPAIR

A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the Keysight (Agilent) N9356B Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another RF Component?
Shop for Comparable Products on our  used RF Component page or new RF Component page


   Keysight (Agilent) N9356B   Description / Specification:

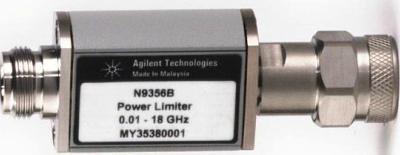

Keysight (Agilent) N9356B 18 GHz Power Limiter, 25 dBm Limiting Threshold

The Agilent N9356B 18 GHz power limiter provides the best broadband input power protection to sensitive RF and microwave instruments and components, like network analyzers, spectrum analyzers, and amplifiers, from excess RF power, DC transients and ESD. Specifications. Frequency range 0.01 to 18 GHz. Insertion loss: < 1.75 dB. Return loss: > 15 dB (Return loss specification from 10 MHz to 30 MHz is 8.5 dB (VSWR: 2.2)). VSWR: 1.43. Impedance: 50 ohm nominal. Maximum input power levels Continuous: 6 W. Limiting threshold: 25 dBm typical. Maximum leakage power: 24 dBm. Maximum DC voltage at 25 °C: 30V. Turn on time: < 100 ps. Connectors: Type-N. ESD immunity: 6.0 kV per IEC1000-4-2 center contact discharge.





Standard Calibration $330.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the Keysight (Agilent) N9356B. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related RF Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

Dynamic range
Dynamic range the ratio of a specified maximum level of a parameter, such as power, current, voltage or frequency, to the minimum detectable value of that parameter.

Noise Floor
Noise floor is the measure of the signal created from the sum of all the noise sources and unwanted signals within a measurement system.

White Noise
White noise is noise whose power spectral density (watts/hertz) is constant for the frequency range of interest.

Please contact us for your Keysight (Agilent) N9356B CALIBRATION and/or Keysight (Agilent) N9356B 18 GHz Power Limiter, 25 dBm Limiting Threshold REPAIR
