Keysight (Agilent) 81101A CALIBRATION and Keysight (Agilent) 81101A REPAIR

A calibration by Custom-Cal is performed by engineers with extensive OEM experience. We have the expertise and the necessary standards to perform the Keysight (Agilent) 81101A Calibration, onsite calibration may be available. We specialize in quick turnaround times and we can handle expedited deliveries upon request.

Need another Pulse Generator?
Shop for Comparable Products on our  used Pulse Generator page or new Pulse Generator page


   Keysight (Agilent) 81101A   Description / Specification:

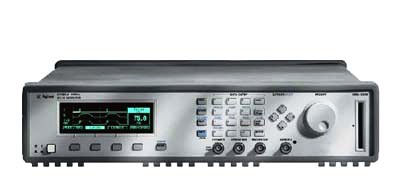

Keysight (Agilent) 81101A 50 MHz One Channel Pulse Generator

The Agilent 81101A mainframe includes one output channel it generates all the standard pulses and digital patterns needed to test current logic technologies (CMOS, TTL, LVDS, ECL, etc.). Timing values can now be swept without the danger of misleading pulses or dropouts that could cause measurement errors. Specifications. Frequency range: 1 mHz to 50 MHz. Timing resolution: 3.5 digits, 5 ps best case. Period RMS jitter: 0.001% + 15 ps (With PLL), 0.01% + 15 ps (With VCO). Period range: 20 ns to 999.5 s. Period range Accuracy with PLL /VCO: ± 0.01% (±5%) (similar to RMS Jitter). Width range: 10.0 ns to (period - 10.0 ns). Width range Accuracy: ±5% ±250 ps. RMS jitter: 0.01% + 15 ps. Accuracy: ±5% ± 500 ps. Transition time range (10/90): 5 ns to 200 ms variable. Linearity: 3% typ. for transitions > 100 ns. Burst Count: 2 to 65536 (single or double pulses). Delay: Delay, phase or % of period. Double pulse delay: Double pulse and delay are mutually exclusive. Duty cycle: Set between 0.1% and 95% (subject to width limits 99.9% with overprogramming). Output connectors: BNC single-ended. Source Impedance: Selectable 50 ohm or 1 k-ohm. Accuracy: Typ. ± 1%. Max. external voltage: ± 24 V. Short circuit current: ± 400 mA max. Base line noise: 10 mV RMS typ. Overshoot /preshoot /ringing: ± 5% of amplitude ± 20 mV.





Standard Calibration $415.00 *
Click on Logo for More Prices
*This is a Web introductory price for one calibration of the Keysight (Agilent) 81101A. Price does not in most cases include measurement performance data. Pricing does include NIST traceable calibration and issue of a calibration certificate and calibration label. Pricing may vary slightly due to volume and location of laboratory supporting calibration. Volume pricing may apply. On-site fees may apply depending on logistics, location and volume of work to be completed during the visit.


Related Bench Equipment Terms and Definitions. For a complete list go to our  Terms and Definitions Page.

dBm
dBm (sometimes dBmW) is an abbreviation for the power ratio in decibels (dB) of the measured power referenced to one milliwatt (mW). Zero dBm equals one milliwatt. A 3 dB increase represents roughly doubling the power, a 3 dB decrease, the power is reduced by about one half.

Millimeter-wave
Millimeter-wave is a term that generally refers to frequencies of 26.5 GHz and above. That is where signal wavelengths fall below approximately 10 mm, and thus the terminology changes from centimeters to millimeters.

Power Repeatability
Power Repeatability is the random uncertainty in reproducing the power level after changing and re-setting the power level. The power repeatability is ± half the span (in dB) between the highest and lowest actual power. Note: - The long-term power repeatability can be obtained by taken the power repeatability and power stability into account.

Stability
Stability is the extent to which a specified property, characteristic, or parameter of a substance, device, or apparatus, remains fixed with the passage of time or with varying environmental conditions.

Please contact us for your Keysight (Agilent) 81101A CALIBRATION and/or Keysight (Agilent) 81101A 50 MHz One Channel Pulse Generator REPAIR
